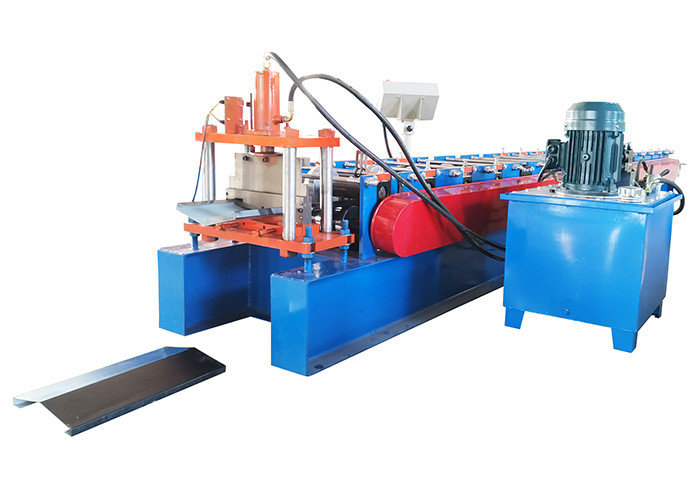

aluminum zinc color steel roof Ridge Cap Roll Forming Machine with plc control
Technical parameters of fair ridge cap making machine
| Model number | metal roof ridge cap roll forming machine |
| Rolled material | 0.3-0.7mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates |
| Effective width | as customer's require |
| Feeding width | as customer's require |
| Forming steps | 9-18 stations |
| Roller | 45# forged steel, hard chrome plating within 0.05mm |
| Diameter of shaft | 70mm |
| Main motor power | 4 kw |
| Pump power | 3 kw |
| Sprocket chain | 1 inch |
| Drive type | by chain |
| Cutting Blade | Cr12, heat treatment 60-62°C |
| Frequency Converter | It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
| component | 1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table |
| Payment terms | cash,T/T,L/C. |
After-sales service
A: Warranty: One year ,and we will provide the technical support for the whole life.
B: Training: the buyer should charge of visa, round-trip ticket, food and accommodation
overseas and USD100/person/day for salary.
C: Need one technician.
D: Training time: one week (contains the time of installation and adjustment)
Our Metal Ridge Cap Machine Advantage
1. Good quality: We have a professional designer and experienced engineer team.And
the raw material and accessories we use are good.
2. Good service: we provide the technical support for whole life of our machines.
3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4. Easy operation:All machine cotrolling by PLC computer controlling systerm.
5. Elegant apperance:Protect the machine from rust and the painted colour can be customized
6. Reasonable price:We offer the best price in our industry.
