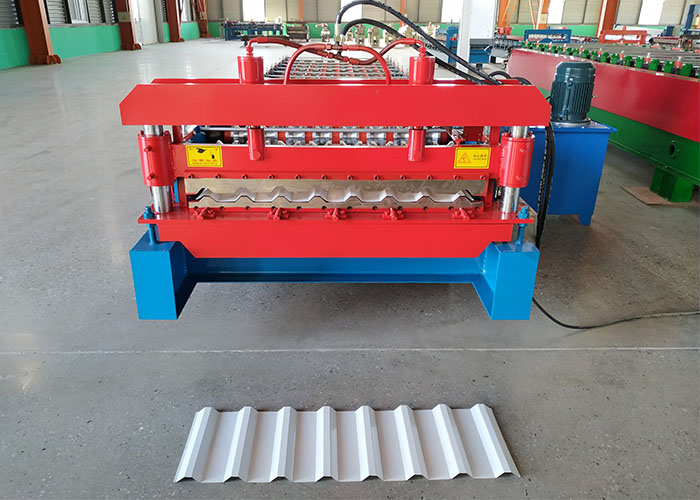

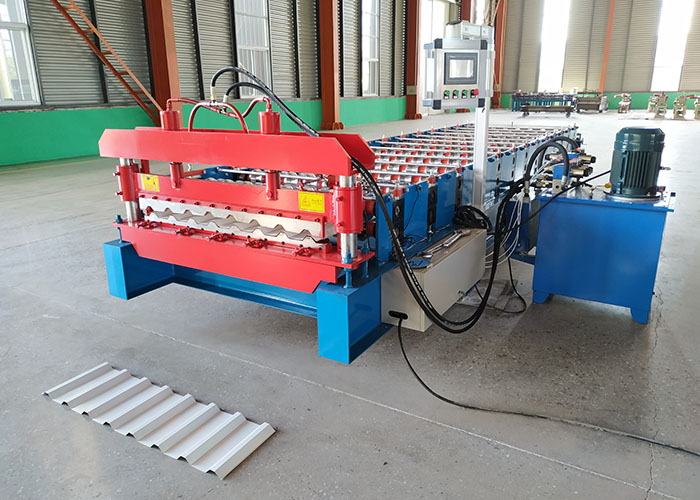

Colorful Steel Trapezoid Roof Making Machine Special For House Roofing Sheet Making
1. Colorful Steel Trapezoid Roof Making Machine Special For House Roofing Sheet Making
--- This roll forming machine adopt continuous forming rollers to form steel plat to the roofing shape.
--- Machine rollers are the core parts of this machine, we adopted high grade steel for rollers.
--- PLC control system is the hart of our machine, ensure machine have a high efficiency.
--- Only one or two worker to operate this machine.
2. Colorful Steel Trapezoid Roof Making Machine Special For House Roofing Sheet Making parameters
| parameters |
| Production Capacity | 8-12 m/min |
| Power(W) | 4+4KW |
| Voltage | 380V 50Hz 3phases |
| Dimension(L*W*H) | 6500*800*1500mm |
| Weight | 2.5 T |
| Suitable material | Colored Steel plate, galvanized board, Aluminum plate |
| Width of the raw material | 1200 mm |
| Rows of rollers | 12 rows |
| Material of roller | High grade 45# steel(plated chrome on surface) |
| Thickness of raw material | 0.3-0.8 mm |
| Certification | ISO |
| Tile Type | Tile Cutting Machine |
| Machine Components |
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
3. roll forming machine company profiles
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
4. Comapny advantage:
In Botou, we start the pressure roll forming machine export business from 2008.
As a manufacturer we are specialized in all kinds of roll forming machine, we are not machine supplier, we are a roll forming solution provider.
Provide best price,good quality and fast delivery.
5. FAQ
1.Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
3. How to visit your company?
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 24 months, if the broken parts can't repair, we can send the new parts replace the broken parts freelly, but you need pay the express cost yourself. If after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.
